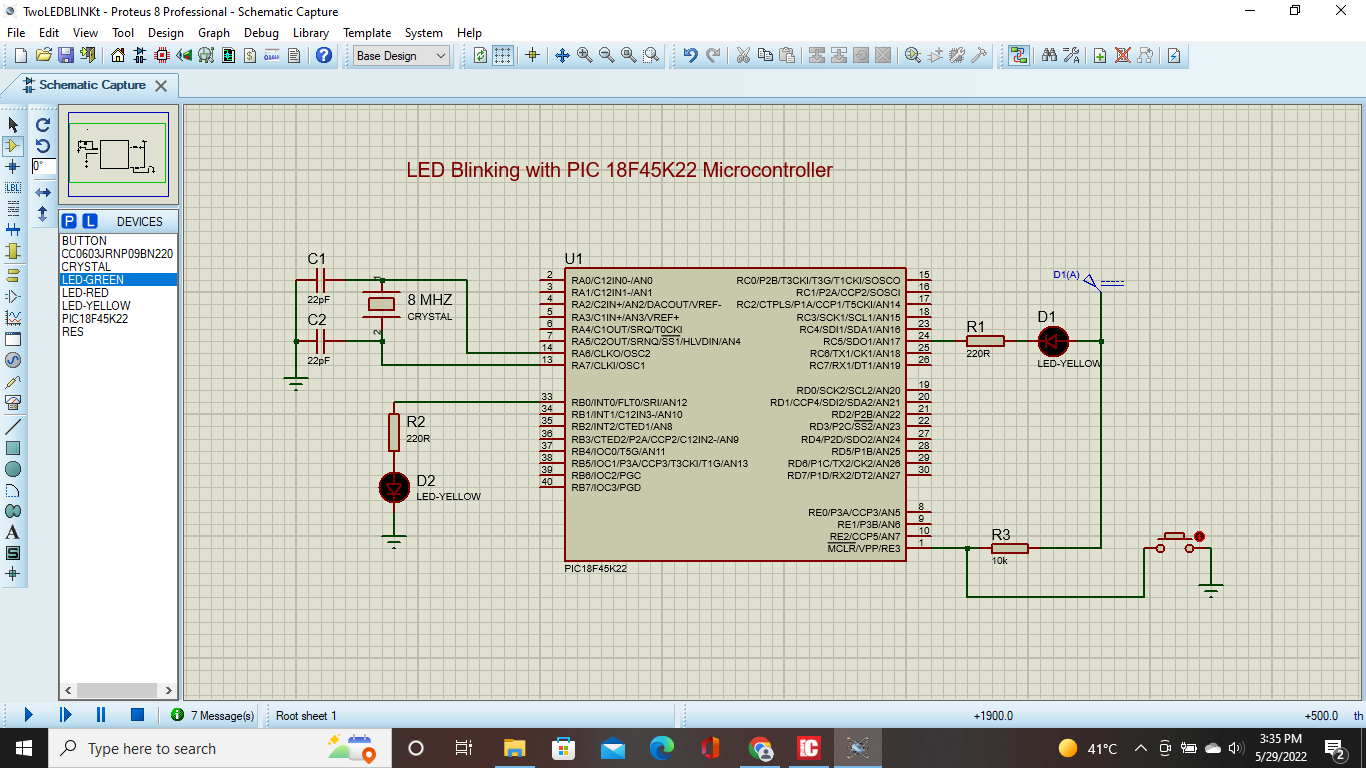

LED Blinking Project with PIC 18F45K22 Microcontroller in Micro C Programming

 https://github.com/anokhramesh/LedBlink-with-PIC18F45K22

download link for MikroC

https://drive.google.com/file/d/13pVa8EOkEv4mVRU1Ks4Row7WxD4stF33/view?usp=sharing


code

//Blinking 2 LED

//anokhautomation

//anokhramesh@gmail.com


void main() {

 TRISB = 0;//set direction to OUTPUT

 TRISC5_bit = 0;

 ANSELB = 0;

 ANSELC = 0;

 do{

 LATB.B0 = 0;

 LATC.B5 = 0;

 Delay_ms(500);

 LATB.B0=1;

 LATC.B5=1;

 Delay_ms(500);



} while(1);

}
